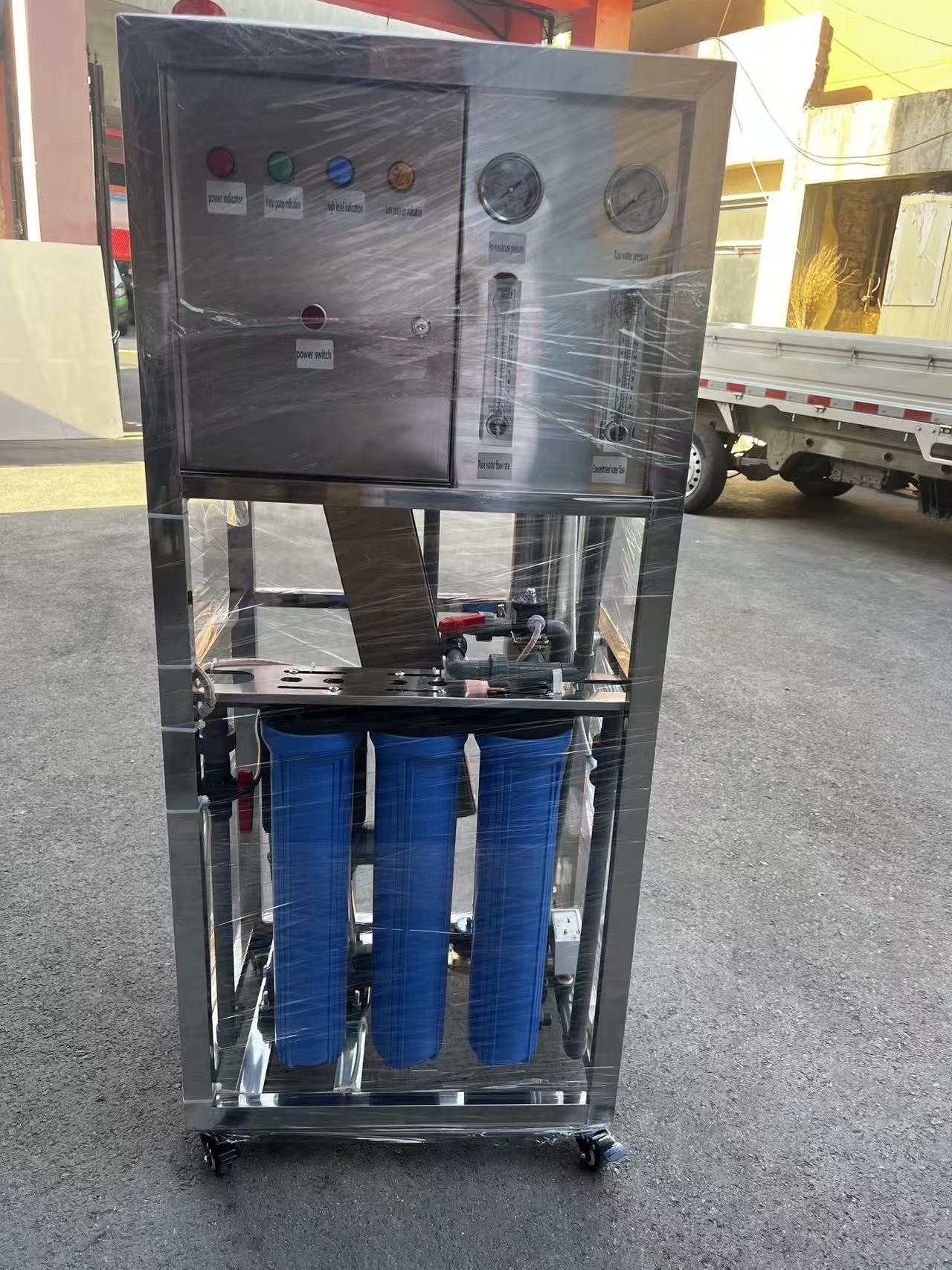

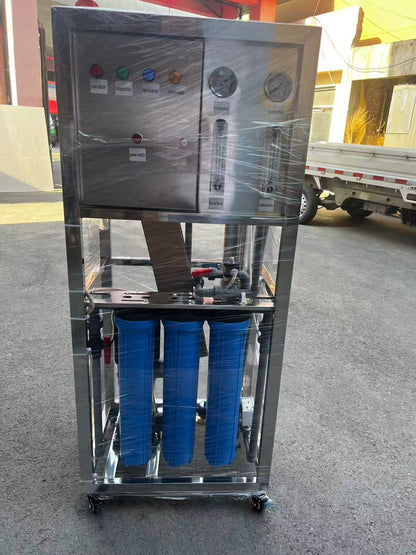

250L/H Reverse Osmosis System
250L/H Reverse Osmosis System
A 250 LPH (Liters Per Hour) Reverse Osmosis (RO) system is a commercial or industrial-grade plant designed for high-capacity water purification. It typically removes up to 98% of Total Dissolved Solids (TDS) and is ideal for small businesses, hospitals, or schools.
Key Technical Specifications
| Feature | Details |
| Purification Capacity | 250 Liters Per Hour (approx. 1,500 Gallons Per Day) |
| Recovery Rate | 50% – 60% of feed water |
| Power Consumption | Approx. 1.5 – 2.0 kW (typically 2 HP High-Pressure Pump) |
| Operating Voltage | 220V/50Hz (Single Phase) or 380V (Three Phase) |
| Feed Water TDS | Up to 1,500 – 2,000 ppm |
| Dimensions (L x W x H) | Approx. 1000mm x 600mm x 1500mm |
| Weight | Approx. 80kg to 150kg depending on frame material |
Main System Components
-
Pre-Treatment Filters: Includes a Multi-Grade Sand Filter to remove large particles and an Activated Carbon Filter to eliminate chlorine and odors.
-
High-Pressure Pump: Usually a vertical centrifugal multistage pump made of Stainless Steel (SS304).
-
RO Membrane: A single 4040-size (4" diameter x 40" length) TFC Polyamide membrane.
-
Instrumentation: Equipped with Rotameters for flow measurement, Pressure Gauges, and high/low-pressure switches for pump protection.
-
Control Panel: An automated electrical panel with voltmeter, ammeter, and indicator lights for system status.
Typical Applications
-
Bottled Water Production: Suitable for small-scale water bottling or refill stations.
-
Industrial Use: Pharmaceutical manufacturing, food processing, and laboratories.
-
Hospitality: Providing clean water for restaurants, hotels, and cafes.
