500 LPH Reverse Osmosis system

500 LPH Reverse Osmosis system

KSh459,060.00
KSh459,060.00
Sale Sold out

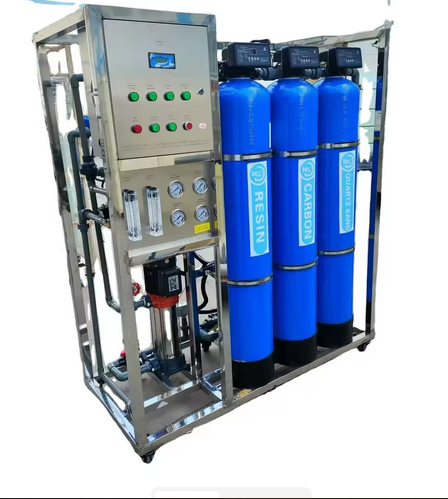

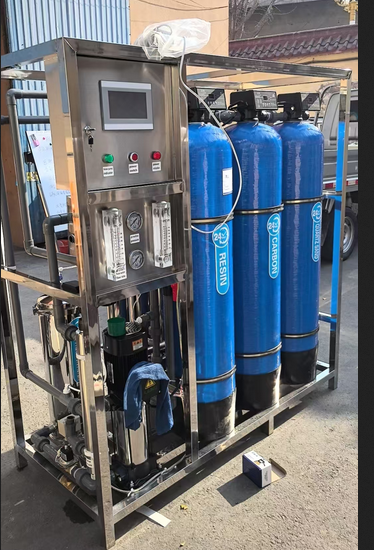

A 500 LPH (Liters Per Hour) Reverse Osmosis system is an industrial-grade water purification plant capable of producing up to 12,000 liters of clean water per day. These systems are designed for high-demand environments such as bottling plants, hospitals, schools, and manufacturing facilities.

Core Technical Specifications

Feature Details
Purification Capacity 500 Liters Per Hour (LPH)
TDS Removal Rate 90% – 99% (depends on raw water quality)
Max Feed Water TDS Up to 1,500 – 3,000 ppm
Water Recovery Rate 30% – 70% (typically around 50%)
Operating Pressure 100 – 200 PSI (approx. 8–14 kg/cm²)
Power Consumption Approximately 1.5 kW – 3.0 kW
Electrical Requirements 220V/50Hz (Single Phase) or 380V/50Hz (Three Phase)
Physical Weight Approximately 120kg – 300kg
Dimensions (L x W x H) Approx. 1200mm x 700mm x 1600mm

System Components & Description

  • Pre-Treatment Stage:

    • Multi-Media Sand Filter: Removes sediment, turbidity, and large particles like sand and rust.

    • Activated Carbon Filter: Eliminates chlorine, odors, pesticides, and organic chemicals to protect the RO membranes.

    • Antiscalant Dosing System: Prevents mineral buildup and scaling on membrane surfaces.

    • Micron Cartridge Filter: A final 5-micron precision filter to catch any remaining fine debris.

  • RO Unit (The Core):

    • High-Pressure Pump: Typically a stainless steel vertical multi-stage centrifugal pump (approx. 1.5–3 HP).

    • RO Membranes: Utilizes 1–2 high-rejection 4040-size Thin Film Composite (TFC) membranes.

    • Membrane Housing: Durable FRP (Fiber Reinforced Plastic) or Stainless Steel vessels rated up to 300 PSI.

  • Control & Monitoring:

    • Smart Control Panel: Includes auto-flush features, safety alarms, and high/low-pressure protection switches.

    • Instrumentation: Features rotameters (flow meters) for permeate and waste water, along with pressure gauges for system monitoring.

Typical Applications

  • Bottled Water Businesses: Producing water that meets high purity standards.

  • Industrial Processes: Boiler feed water, cooling towers, and pharmaceutical production.

  • Hospitality & Institutions: Providing safe drinking water for large residential complexes, hotels, and schools
